Capsule supplement complaints: causes and manufacturing

A customer opens a bottle and finds cracked capsules or loose powder. The complaint is easy to describe. Finding the cause takes more work: the shell may have dried out, the filling machine may have damaged it, or the capsules may have been crushed during handling.

For brand owners choosing a capsule supplement manufacturer, these are useful questions to raise before production. This guide covers powder-filled, two-piece hard capsules, with checks for filling, shell compatibility, and packaging. Our guide to powder supplement manufacturing issues covers related problems with the blend itself.

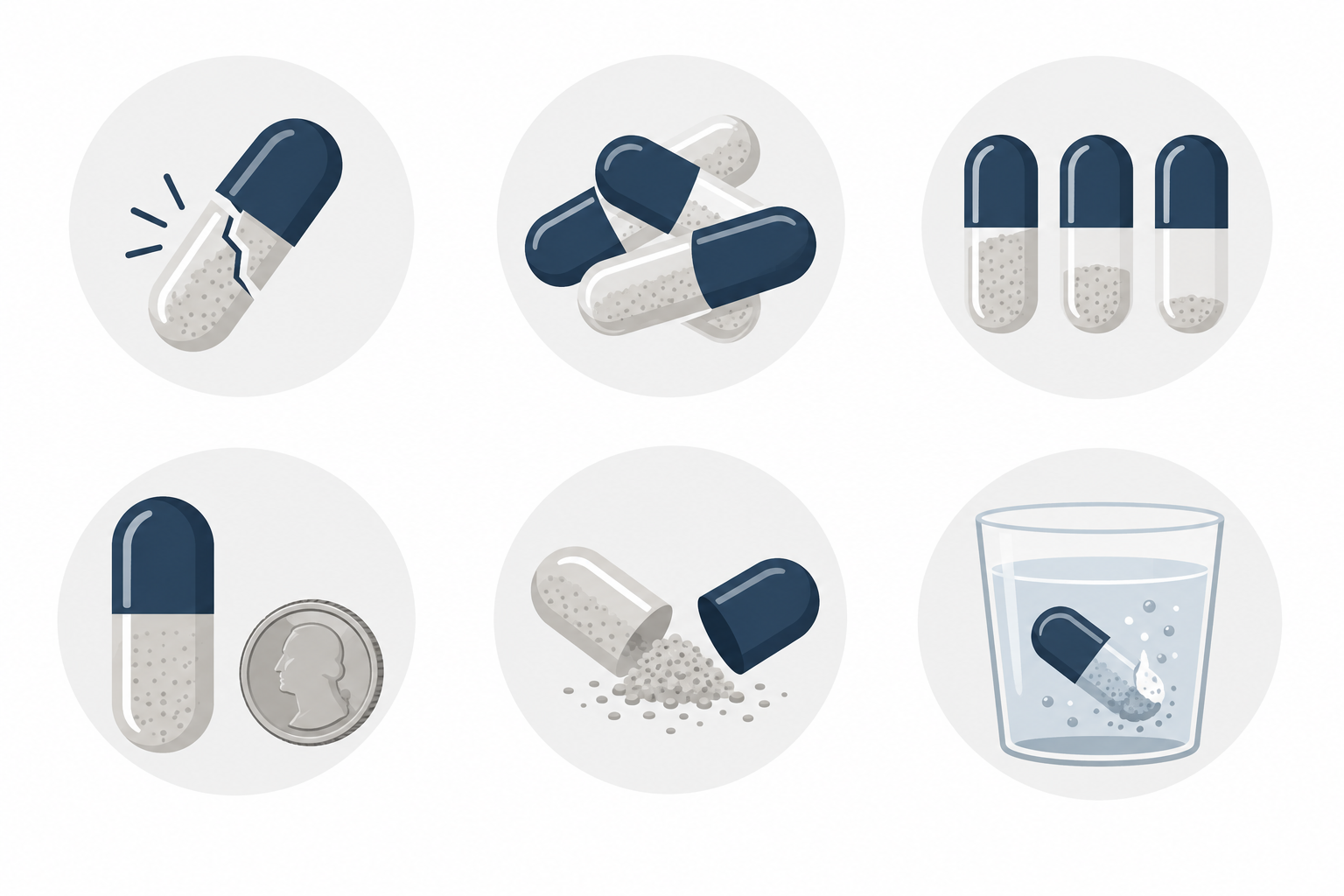

What a capsule complaint can tell you

Cracked, brittle, or dented shells call for an investigation of both moisture conditions and mechanical damage. A photograph can document the defect, but it rarely establishes the cause.

Capsules that stick together or lose their shape may have been exposed to excess moisture or heat. Check storage and shipping conditions as well as production records.

Visible differences in fill level deserve a closer look, too. Powder can settle or pack differently, so headspace alone does not prove that a capsule is underfilled. Weighing the contents provides a better check. Even equal fill weights do not establish equal amounts of each dietary ingredient if the blend is uneven.

A capsule can meet manufacturing specifications and still be uncomfortable to swallow. Size and shape matter, and people’s preferences vary. Review physical samples before committing to a format.

Loose powder may come from damaged shells, incomplete closure, or powder left on capsule surfaces after filling. A bitter aftertaste alone does not establish leakage or premature release; investigate it separately rather than assigning the same cause to both complaints.

Reports of slow breakdown need controlled testing. Watching a capsule in a glass of water does not reproduce a standardized disintegration or dissolution test, and it cannot establish how the product performs in the body.

Where to look on the production floor

Shell moisture and the fill

Hard gelatin shells need moisture to remain flexible. Too little can make them brittle; excess moisture can soften them. A hygroscopic fill can draw moisture from the shell during storage, even when the capsules looked sound at release.

Capsugel gives a typical gelatin shell moisture content of 13% to 16%. Its Vcaps Plus HPMC shells contain 6% to 7% water. Those figures describe shell moisture, not room relative humidity, and the HPMC example should not be treated as a specification for every supplier’s product. Use the selected shell’s technical specification when setting controls. Capsugel’s shell moisture guidance

Powder flow and blend uniformity

Moisture pickup, clumping, static, and particle characteristics can disrupt powder feeding. Machine settings and the way the blend packs during filling also affect fill weight. A check at the beginning of the run will not catch every change that follows.

Blend uniformity is a separate concern. Precise filling cannot correct a poorly mixed blend, and material can segregate during transfer or feeding. Review mixing and handling controls alongside fill weight records, especially when a formula contains ingredients at low inclusion levels.

Capsule closure and handling

Check whether the cap and body lock correctly, whether powder obstructs closure, and whether the equipment damages the shell. Include cleaning or dedusting after filling in the investigation when loose powder appears in the bottle. Increasing closure force without identifying the cause can create another defect.

Shell compatibility and release

Gelatin can cross-link under certain conditions, including exposure to reactive substances such as aldehydes or to heat and high humidity. This can interfere with shell breakdown and release of the contents during laboratory testing. It is one possible cause to investigate, rather than an explanation for every slow-release complaint. Capsugel’s discussion of gelatin cross-linking

Disintegration measures physical breakdown of the dosage form. Dissolution measures how much of a specified substance dissolves under defined conditions over time. Passing one test does not automatically establish the result of the other or prove absorption. Select a method suited to the product; USP <2040> addresses dietary supplement disintegration and dissolution where the individual monographs specify these standards. USP <2040>

Fill volume and capsule size

A capsule holds a volume, so a target weight alone is not enough to select its size. Evaluate the blend’s density and filling behavior, including excipients, then confirm the choice in a trial. Splitting a serving across smaller capsules may improve comfort for some customers, but it also increases the number they need to take.

Gelatin or HPMC?

HPMC, also called hypromellose, is a cellulose-derived shell material used for vegetarian capsules. Gelatin is animal-derived. Both can work well when matched to the formulation and storage conditions.

Consideration	Gelatin	HPMC
Shell moisture	Typically 13% to 16%	Lower; the exact range depends on the shell product
Dry conditions	Can become brittle as the shell loses moisture	Generally more resistant to brittleness at low moisture
Hygroscopic fills	Moisture transfer from the shell needs attention	Often worth evaluating, with compatibility testing
Cost	Often lower	Often higher; compare actual quotations
Vegetarian or vegan positioning	Animal-derived	Check the complete shell composition and supplier documentation

Hygroscopic and moisture-sensitive do not mean the same thing. The first describes a material that takes up moisture; the second describes one whose quality is affected by moisture. A formula may have either or both characteristics. A lower-moisture shell may help, but it does not replace protective packaging or finished-product stability testing.

What to agree with your manufacturer before production

Ask for the fill weight target, sampling plan, acceptance limits, and the procedure for handling results outside those limits. Clarify whether the measurements are net fill weights or whole-capsule weights, and how shell weight is accounted for. Discuss how the manufacturer verifies ingredient content as well as weight.

For U.S. dietary supplements, FDA’s CGMP guidance requires manufacturers to establish specifications and verify that they are met using appropriate tests or examinations. A fill weight tolerance alone does not cover the finished product’s identity, purity, strength, composition, and contamination limits. FDA’s dietary supplement CGMP guidance

Request samples from a pilot or development run. Inspect closure and appearance, review weight results, and assess the proposed capsule size. Visual inspection is useful, but it cannot replace testing for ingredient content or release performance.

Evaluate the finished product in its intended packaging. The bottle or blister, closure, seal, and any desiccant should work together to control moisture through storage and use. Request stability data relevant to that combination, including appropriate release testing when shell compatibility is a concern.
